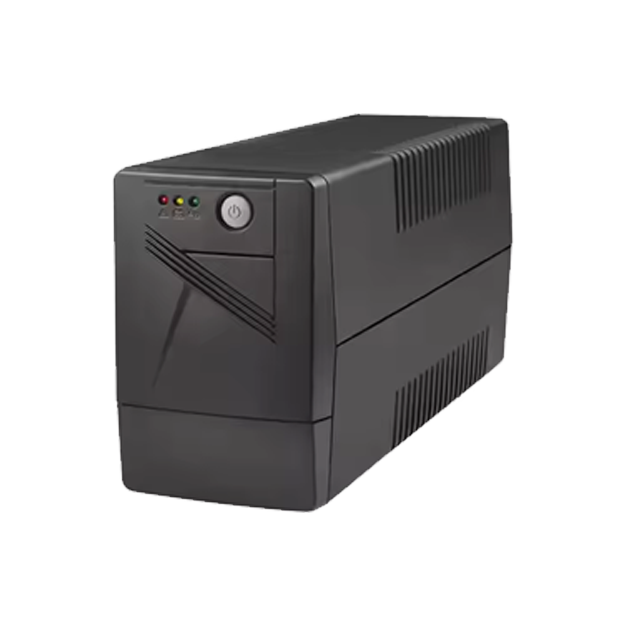

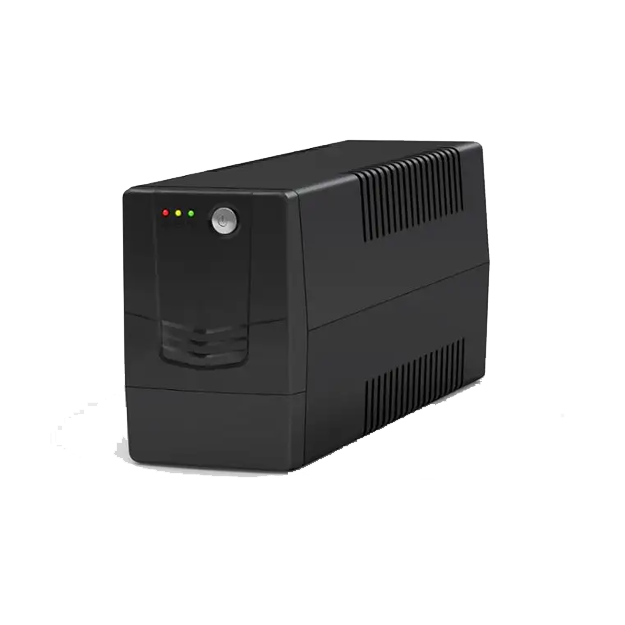

MODEL EX 500-2000 VA UPS

Description: EX Series – Line-Interactive UPS

The EX Series Line-Interactive UPS is designed to deliver reliable power protection for small to medium applications. Featuring Automatic Voltage Regulation (AVR), it safeguards sensitive equipment from power fluctuations, surges, and outages ensuring uninterrupted performance and extended battery life. Compact, efficient, and easy to install, the EX Series is an ideal solution for offices, retail systems, and IT environments.

Features:

  • ⦁ Boost and buck A.V.R for voltage stabilization
    ⦁ Protection: Surge Protection, Short circuit and over discharged protection
    ⦁ Micro Processor based digital control
    ⦁ Auto restart while AC is recovering
    ⦁ Intelligent battery management
    ⦁ Pure Sine wave output
    ⦁ Fully Generator Compatible
    ⦁ Auto diagnose when starts
    ⦁ Humanized alarm system
    ⦁ Frequency Adaptive
    ⦁ Cold Start Function
    ⦁ LED display or LCD display for option
    ⦁ Safety and Environmental standards certification: ROHS, CE

Technical characteristics:

MODELEX-500EX-650EX-800EX-1000EX-1200EX-1500EX-2000
INPUT
Voltage170-270Vac ± 10%
Fraquency50/60Hz+1%(Auto Sensing)
OUTPUT
Voltage100V/110/120AC+10% or 220V/230V/240VAC +10%
Frequency50/60Hz+1% (Auto Sensing)
Power Factor0.6/0.7/0.8
WaveformPure Sine wave output on battery mode
Crest Factor3:1
Transfer TimeTypical 4-6ms
BATTERY
TypeLead Acid Maintenance free batteries
DC Voltage12 V24 V
Configuration1x12V/5.0AH1x12V/7.0AH1x12V/7.0AH1x12V/7.0AH/9.0AH2x12V/7.0AH/9.0AH2x12V/7.0AH/9.0AH2x12V/7.0AH/9.0AH
Typical Recharge Time6-8 hours
Back-up time10 minutes backup time or higher on 70% load
PROTECTION
Full ProtectionSurge Protection, Short circuit, Battery over-charge and over discharge protection
Enviroment
Humidity20~90RH@0~40'C(non-condensing
Noise Level<45db(1m)
MANAGEMENT
USB/RS-232/SNMP(Option)
PHYSICAL
Plastic caseNet/GrossWeight(kg)3.8/4.34.3/4.8 | 4.8/5.35.3/5.89.5/10.010.7/11/211.2/11.7
Dimmension(mm)WxDxH100x280x140140x345x170
Packing Dimmension(mm)WxDxH147x338x210198x406x245
Quantity/20ft2300PCS1000PCS
Metal caseNet/GrossWeight(kg)4.5/5.05.5/6.0 | 6.0/6.56.7/7.210.5/11.212.6/13.414.0/14.8
Dimmension(mm)WxDxH95x280x16595x320x165125x320x110125x380x220
Packing Dimmension(mm)WxDxH145x315x230145x375x230180x390x295180x450x295
Quantity/20ft2400PCS2000PCS1000PCS
Metal caseNet/GrossWeight(kg)6.7/7.27.8/8.3 | 8.0/8.59.0/9.512.6/13.215.7/16.317.0/17.6
Dimmension(mm)WxDxH440x310x88440x310x132

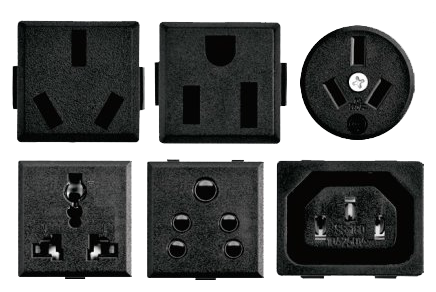

Optional Universal 3 Pin Outlets:

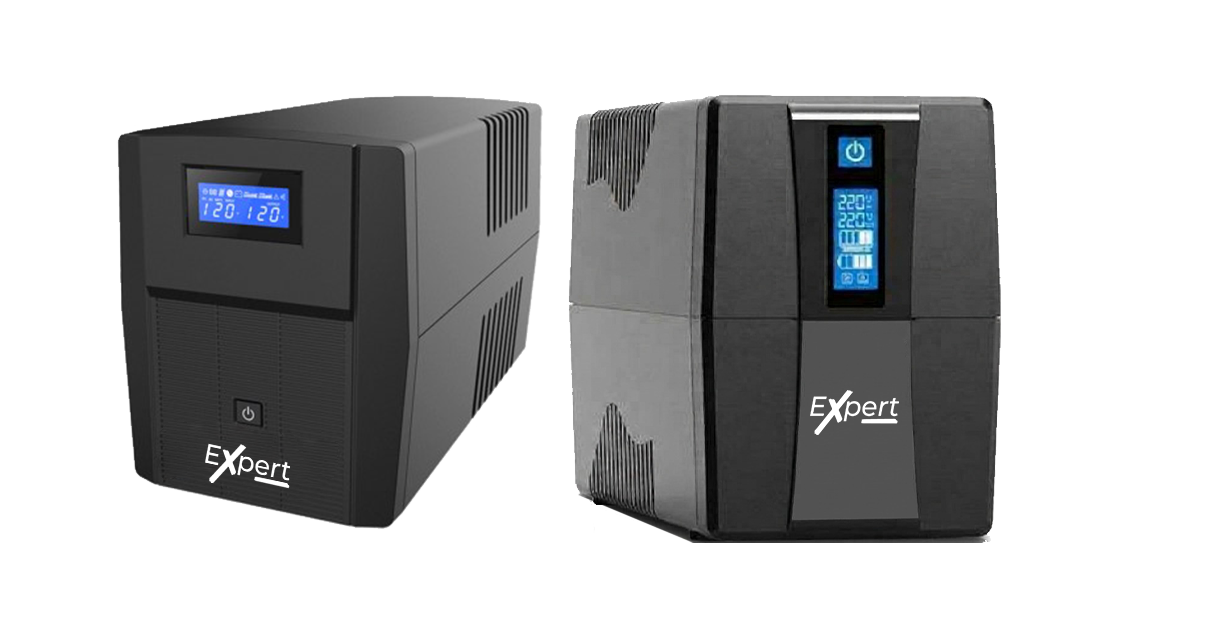

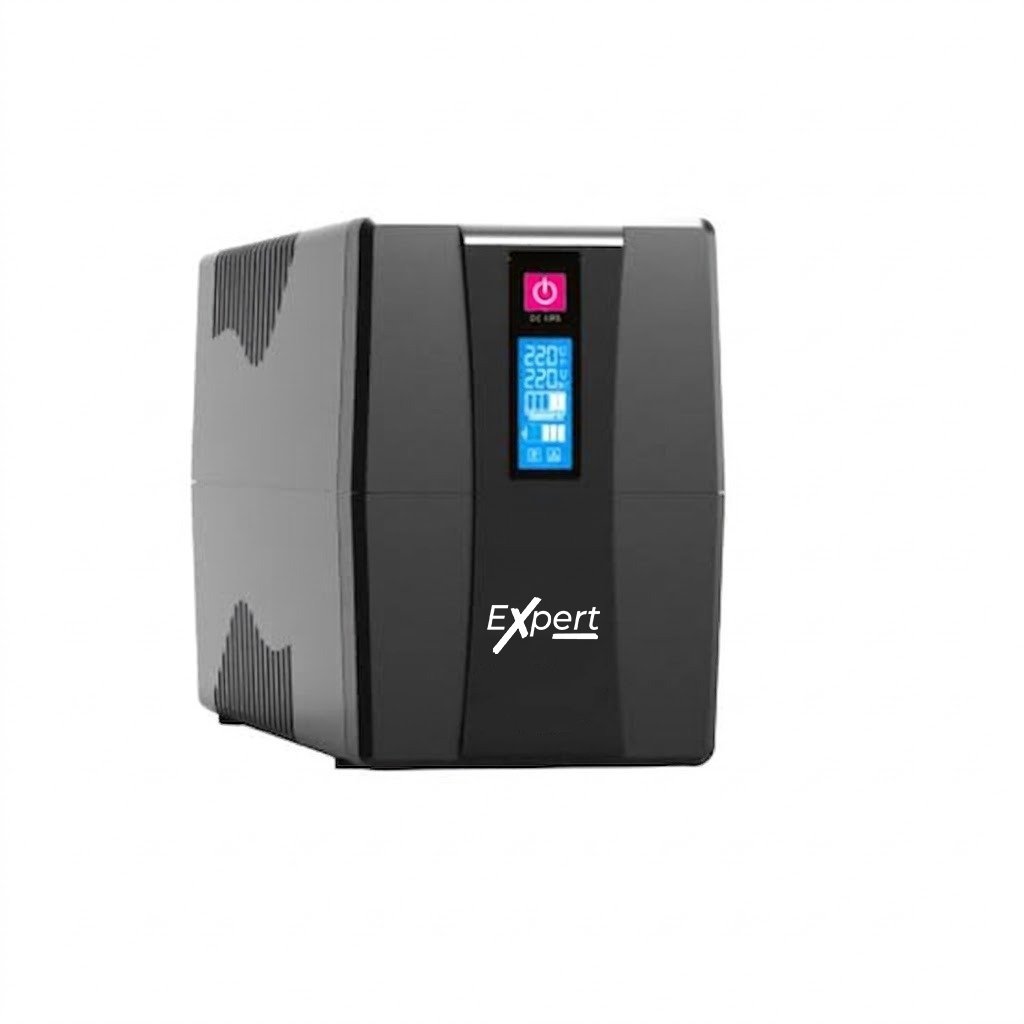

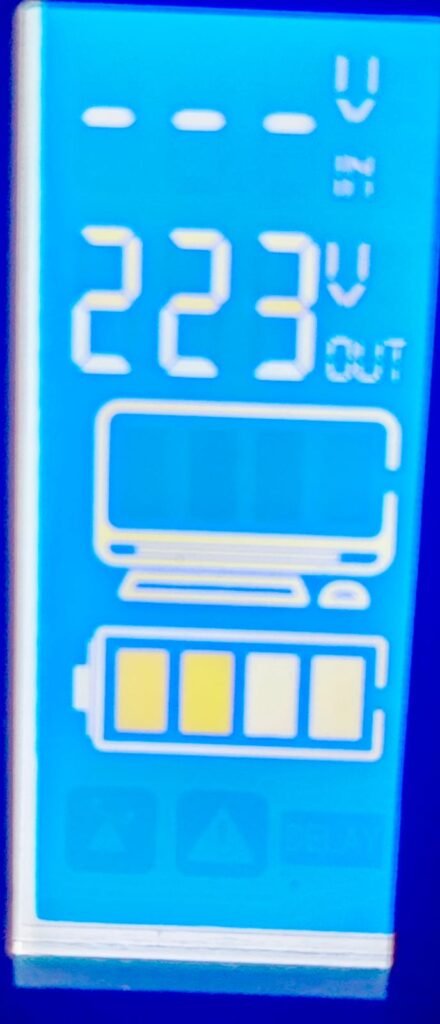

Display:

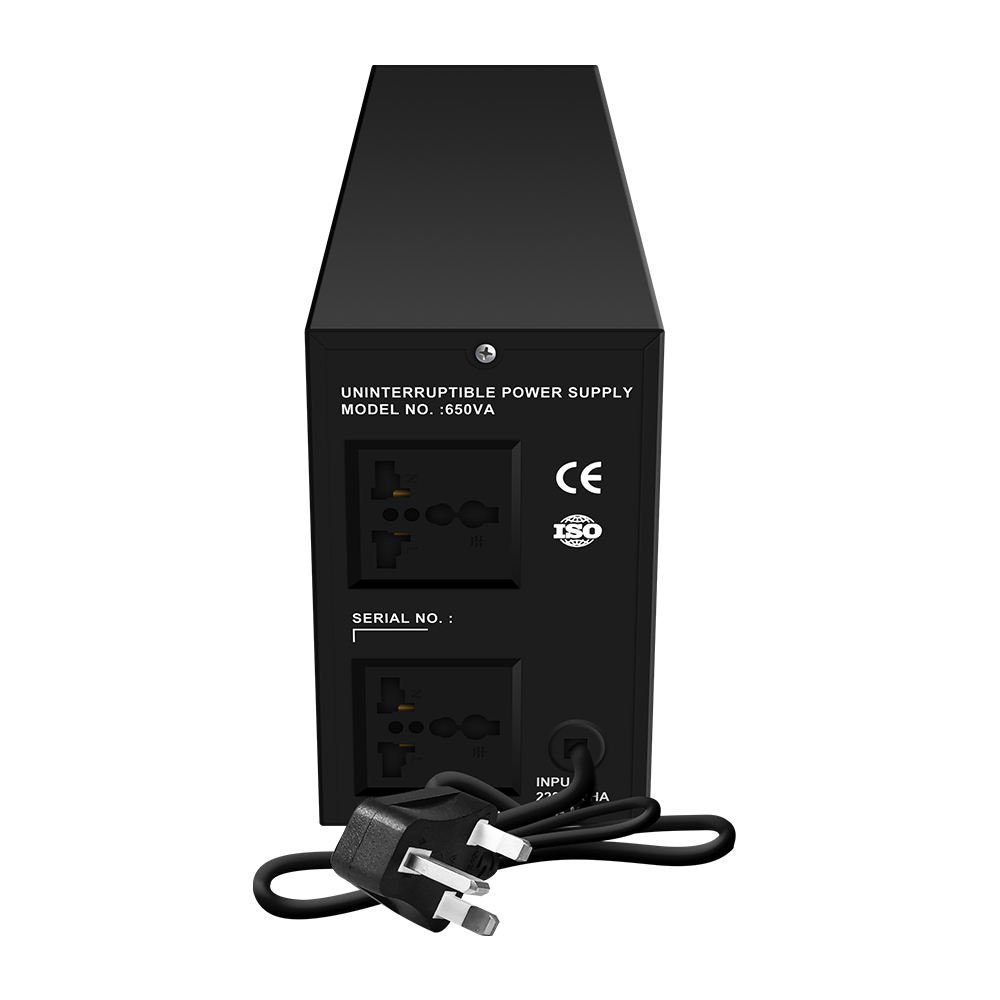

Gallery:

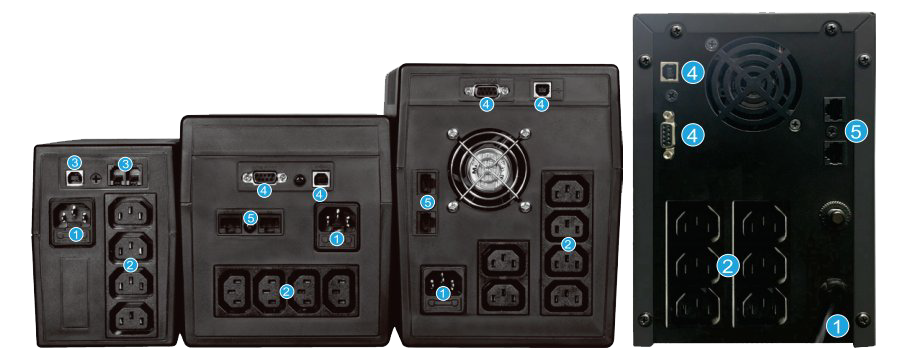

Key:

① AC input
② Output socket
③ USB & RJ11 communication
④ USB & RS232 communication
⑤ RJ45
